Wood finish machine silicone membrane type for sheets and doors

Wood effect decoration plant is special for aluminium profiles, tubes,pipes,frames,aluminium windows and doors into wood effect finish,which is not easy to fade, the wood grain is realistic, and the product looks fancy.

Get A Quote
Contact Us

Wood effect decoration plant:

We have two kinds of wood effect machine, one is for suction heads type,the other type is silicon membrane.We recommend the silicone membrane type for you,which use transfer paper by vacuum transfer printing. This kind of transfer printing machine is vacuum by silicon membrane.


Working principle:

Vacuum transfer printing is a sublimation between the special inks and a powder coated substrate. At the appropriate temperature and pressure, the pigment inks transfer from a paper or a film are absorbed into the powder coating layer. Photographic reproduction of any pattern is possible. This kind of metal surface decoration is popular and widely be applied.

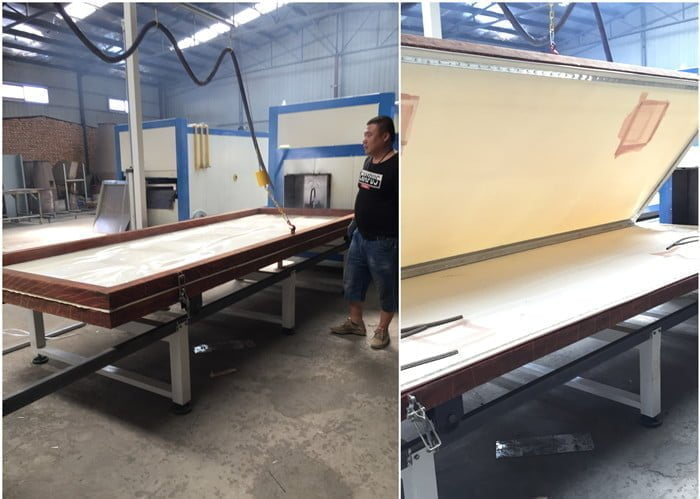

Silicone membrane type wood finish machine

Silicon membrane design:

Silicone membrane type wood finish machine is good at for aluminum sheet/panel,maximum width is 1.5m wide, suitable for multi layers transferring.Just use the transfer paper as consumable material, save much raw material cost.



High efficiency

No bagging process, transfer print batch by batch.

Double working system, continuous processing alternately without stop.
Low cost

Less labor cost: only 3~5 workers needed.

Less running cost: low energy consumption.Cheaper material cost: transfer paper instead of film.

Less investment: reasonable price of equipment.
Simple operation

Easy to handle.

Easy to maintain.
Business benefit

Big added value to your products. Wide possibilities of application.

High efficiency–daily output for aluminium profile is up to 3-5 tons.
Low cost–the running cost of equipment is low, and the price of transfer paper from China is 70% cheaper than that film from European.
Simple operation–greatly simplified, easy to handle and maintain. Rapid change to another product.


steel doors, aluminium profiles, windows and doors, steel and aluminiun sheets, embossed steel sheets

heating energy

Natural gas, LPG,diesel oil or electricity

Wood finish machien size (L*W*H)

L28500m*W2100mm*H3000mm, or customized

Labor required (persons)


Vacuuming system

2 sets hydraulic

Working table

2 sets, silicone membrane type working table for sheets and doors, and suction heads type for aluminium profiles and windows,and frame.

Heat preservation device

2 sets
