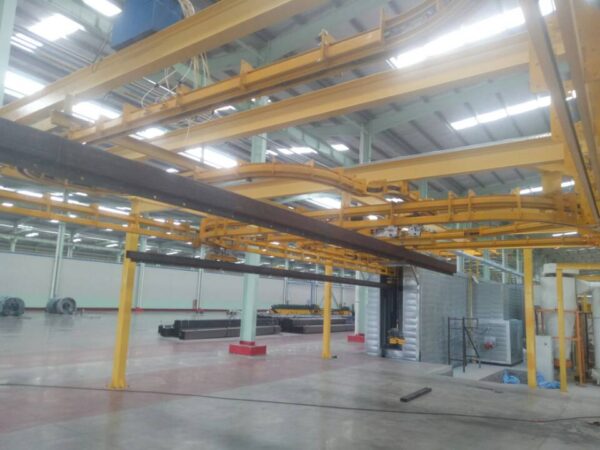

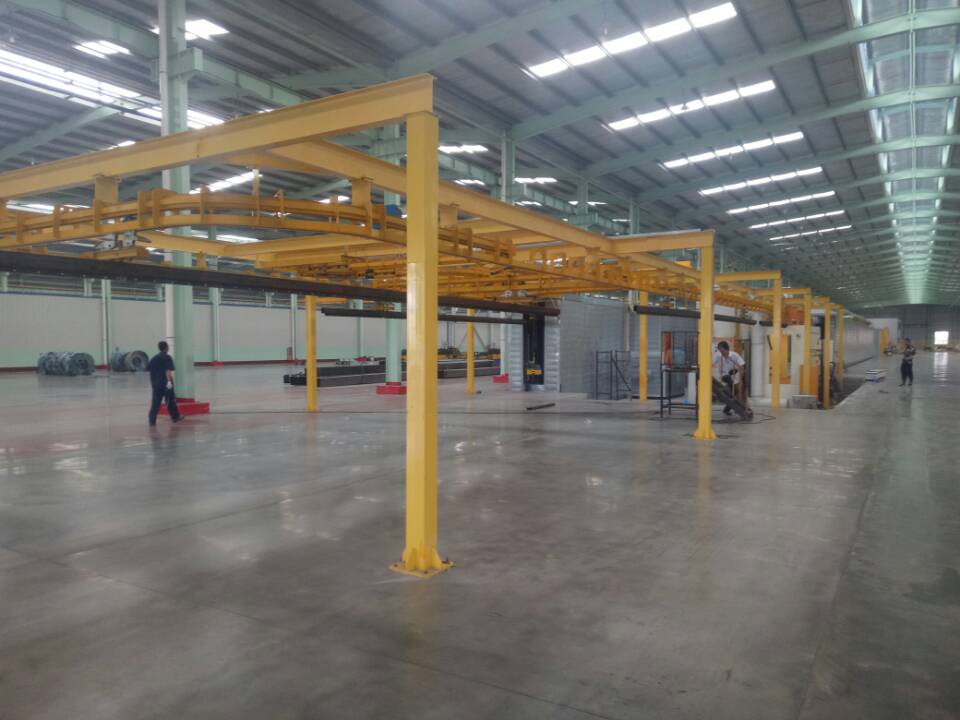

power and free conveyor powder coating plant

Powder Coating Production line consists of stainless steel powder coating booth, manual spray gun, reciprocator, fast change color recovery system, curing oven, heat exchange system, conveyor chain.

The production line size is according to the client requirement, such as products’ size, capacity, factory size and so on.

Get A Quote
Contact Us

Product Application

Powder Coating Production line is used in various industries such as for electrical appliances, hardware, aluminum profile, building materials, automotive, motorcycle, bicycle, traffic fence, sports equipment, medical equipment, and steel furniture.

Powder Coating Production line consists of stainless steel powder coating booth, manual spray gun, reciprocator, fast change color recovery system, curing oven, heat exchange system, conveyor chain.

The production line size is according to the client requirement, such as products’ size, capacity, factory size and so on.

Different client has different scale.

Surface pretreatment

To get a clean and protected surface of the work piece before coating, it is needed to prepare the surface of the work pieces with the actually needed pre-treatment method.

dip pre-treatment plant is used for especially heavy and long work pieces, e.g. aluminium profiles. In most cases the plant is fitted into the floor, this to avoid unnecessary lifting height when the work pieces are moved trough the processes.
Dependent on the work pieces and capacity, dip plants can be delivered included manual or automatic crane for the transport of work pieces

Powder booth:

Various range of industrial powder booths is based on a modular concept, which enables each booth to be customized to suit any specific requirement. The size of the Manual & Automatic Booth is determined by the size, the speed and the shape of the objects to be coated. The high efficiency cyclone collector recovers as much as 98% plus of the powder exhausted from the booth. It has 2880 rpm motor with highly efficient impeller given a rotary motion which creates a centrifugal force on particles. After filter Bag System for Non-Pollution Area.

Exclusive Features:

Optimal system design to ensure powder containment while meeting industry safety standards

Maximum recovery efficiency

Multiple color capabilities

Easy cleaning

All filter media accessible and easily replaced

Minimal maintenance required

Versatile design to meet changing production requirements

Optimum use of plant floor space

Minimal plant air and energy requirements

Safe operational noise levels

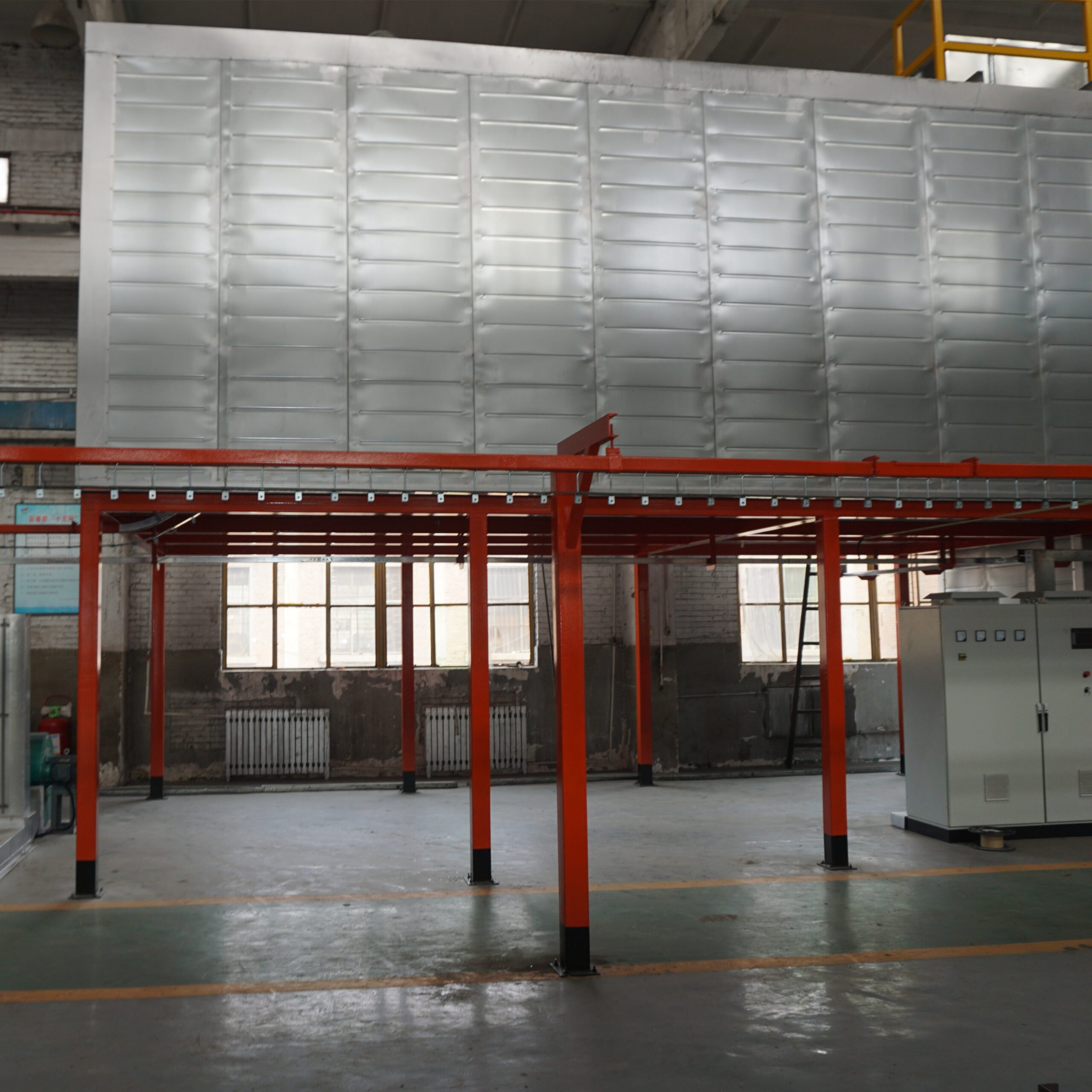

Curing oven

Whether electrical, gas or diesel fired. Whether batch type or conveyorized tunnel type. Designed and built specially for Powder & Liquid curing purposes assuring you of low power consumption with uniform temperature throughout the working space in the oven.



Melting & Curing constitutes a highly critical phase of the powder coating process. The curing schedules recommended by the powder or liquid supplier must be strictly followed, if good adhesion & corrosion resistance is to be achieved. While powder melts at approx.100°C, curing requires higher temperatures usually between 180°C to 200°C.If the curing is inadequate, the quality will be brittle and flake-off easily. If the powder coat is exposed to harsh heat its colour may change.

Construction:

Welded or modular construction with high quality M.S Sheet

Hot air circulating blower for uniform heat

High quality insulation (Glass/mineral wool) to eliminate heat loss

Electrical,gas& diesel fired (heat exchanger)

Digital temperature controller with auto on/off or manual

Asbestos gasketing, flap sliding doors

Perfect locking arrangement and heat resistant paint(inside)

painted product material

metal,steel aluminium,

painting method

Automatic spray powder + manual touch up

powder coating line space required

according to clients' requirement

heating energy

natural gas, LPG, diesel oil,electricity

powder coating line chain speed

0.5–5.0m/min (adjustable)
